WR Sport Performance Package

Genuine Accessories    #44S/Q5/025 Installation Instructions

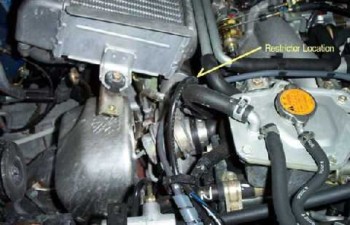

Fig. 4 - Location:

Fig. 5:

Fig. 6:

Fig. 7:

Prodrive           Exhaust System Due to the non-technical nature of fitting the Prodrive exhaust system components, detailed instructions of this procedure have not been included here.

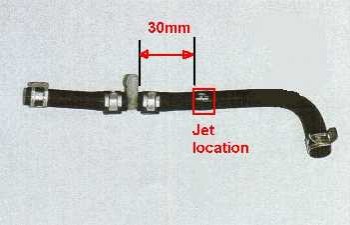

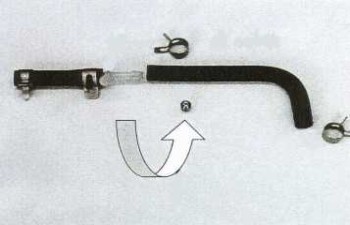

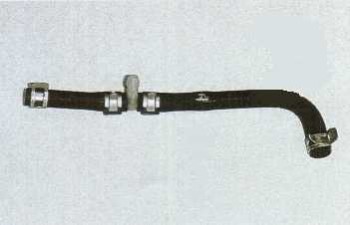

Fitting Procedure (cont.): Prodrive           Jet (restrictor) fitment to wastegate controller supply pipe 1. Disconnect the pipe from the car as seen in Fig. 5 2. Remove the standard jet (restrictor) from the pipe. (Fig. 6) 3. Replace the new Prodrive jet (restrictor) into the pipe 30mm to the right of the T-joint and refit      to car. (Fig. 7)

Fitting Procedure (cont.): Prodrive           Intercooler Pipe fitment 1. Remove the existing pipe from the car and replace with new Prodrive pipe. 2. Connect up the ends of the new pipe in the same orientation as the standard unit. 3. Make sure that all three ends of the pipe are pushed onto their connections fully and that there     are no twists or restrictions in the pipe. If twists are seen, manipulate the ends until the pipe     sits correctly. This may mean pushing the hose ends on slightly past the stoppers on the turbo     and intercooler connection ends.
